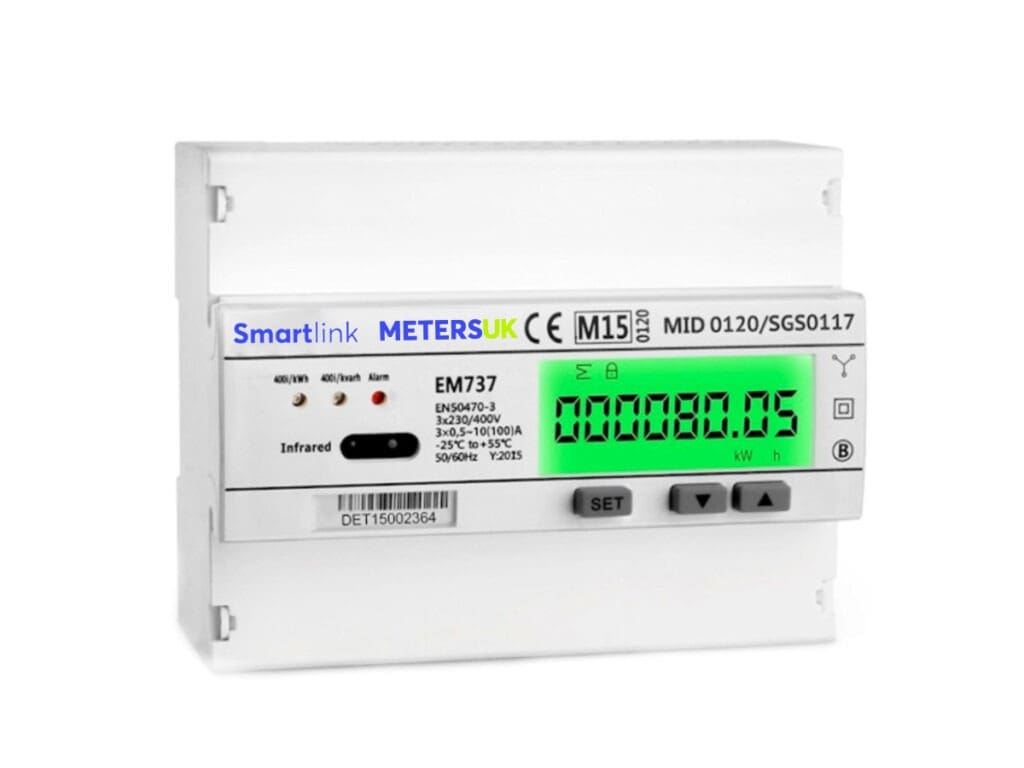

Three Phase Whole Current Electric Meter Modbus EM737

Description

The EM737 is an advanced four quadrant meter for installing into 3 phase networks.
This meter is more advanced then your normal 3phase meter and cabling is plugged in direct to the meter.

The meter measures active or combined energy designed for residential, utility and industrial applications.
House in a 7-DIN module the unit is designed for high level performance which is both safe and easy to install.
With bi-directional energy measurement, this meter is ideal for solar PV energy metering.

Main Features and Functions

• Three phase metering
  MID approved with appendix “B” and “D” certification
  Three phase metering ,7 DIN modules
  Direct metering up to 100A
  Accuracy class B according to EN50470-3
  LCD display, 6 integer 2 decimal
  Large clear back light display

Electrical measurements:
Volts :  L1,L2,L3-N   |   Amps :  L1,L2,L3,Σ,Neutral   |   kW & kvar & kVA & PF :  L1,L2,L3,Σ

Frequency

• kWh,kvarh +, -, Σ       |       kW& kvar Demand +, -, Σ
• Isolate pulse output and IR (DIN43864)
• Optional single-phase model
• RS485 communication port, modbus protocol
• IR port
• Program by button on the nameplate
• Memory back-up (EEprom)

The meter is intended to be installed in a Mechanical Environment ‘M1’, with Shock and Vibrations of low significance, as per
2004/22/EC Directive and should be installed in Electromagnetic Environment ‘E2’, as per 2004/22/EC Directive.

If you think your cabling could be too thick please look at the EM737 CT meter.
