Description

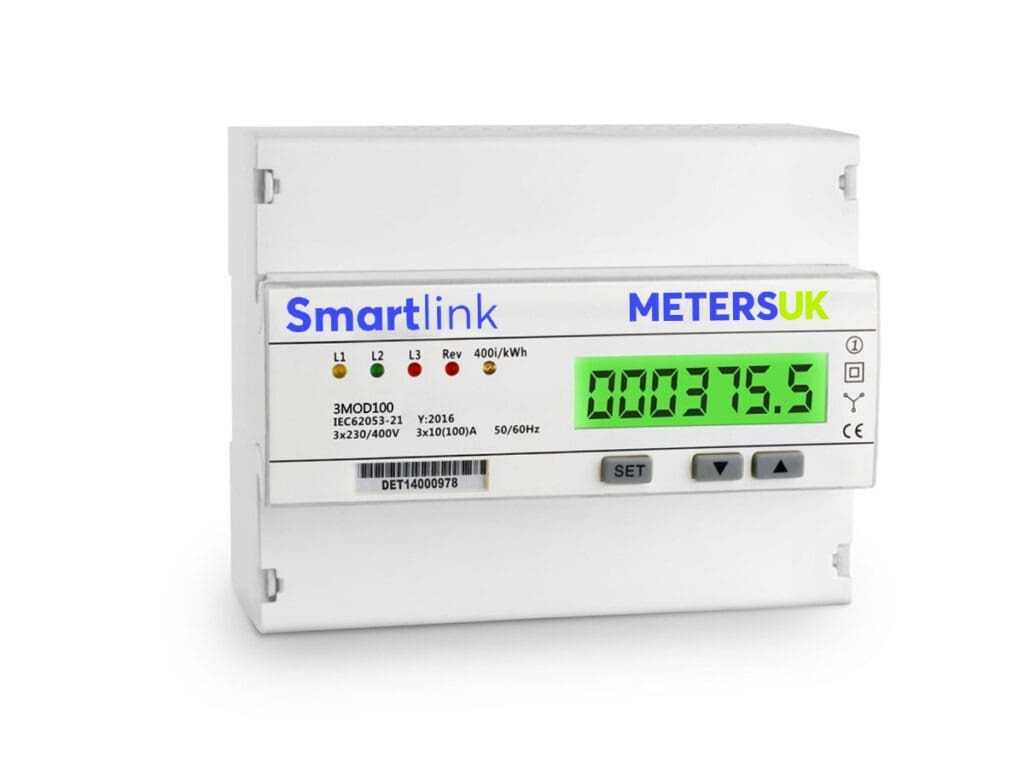

This is the meter you would use if you need a 3 Phase meter with amperage of 100Amp. This is a direct connect meter and gives readings of total energy used, and it is also Din Rail mounted
If you just want to use this meter for domestic use and not connect to a BMS, please state “No” for programming.
If you are connecting to a BMS system, please ensure you have the following information available if you want us to program the unit (additional cost) :-
Baud Rate : 1200 | 2400 | 4800 | 9600
Address : 1 – 256
Parity : None | Even
Main Features & Functions
• Three Phase metering, 7 din modules
• Accuracy class 1 according to IEC62053-21
• LCD display, 6 integer 1 decimal
• Large clear backlight display
• Smart communication port, Modbus RTU with 16 bit CRC
• Energy consumption LED
• Internal transformer
• Direct metering up to 100A
• Can be set through front panel
• Memory back-up (EEprom)
