From £75.00 Ex VAT

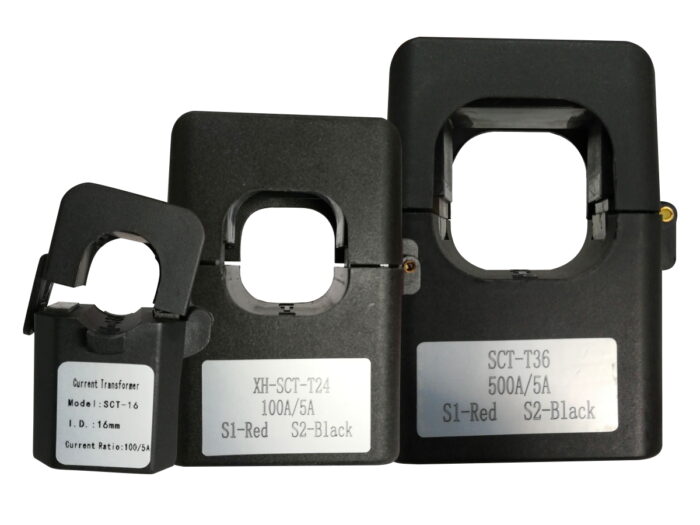

SCT-T Series Split Core Current Transformer
Sold in a set of 3. Price shown is for the set.
Available in 100amp, 200amp, 300amp and 500amp
Please see below the Amperage range and CT needed.
001 – 100 = 100 Amp
101 – 200 = 200 Amp
201 – 300 = 300 Amp
301 – 500 = 500 Amp
CT opens and is clipped around the electrical wire you are wanting to measure.
Cable width sizing :
100Amp CT 16mm/24mm
200Amp CT 24mm
300Amp CT 36mm
500Amp CT 36mm
Main Features and Functions
• Small Size
• Low Cost
• High Secondary Turns
• Secure Locking Hinge
• Maximum continuous primary current 100A to 500AAC
• Output: 5A at rated current
• Accuracy : ± 1% 2VA
• Indoor or Outdoor use, outdoor type with rubber cover
• Insulation Voltage: 600VAC
• Maximum Primary Voltage: 5000VAC (Insulated Conductor)
• Phase Angle : >2°C at 50% of rated current
• Frequency Range: 50Hz to 400Hz
• Operating Temperature: – 15°C to 60°C
• Leads: 1.0m cable
• Output and leads can be customized
• Good linearity at very low current
CT wiring can be extended, as a twisted pair, to a max. of 30feet. Should you wish your CT wiring to be extended we will add a price of £ 15.00 ex VAT per CT.
Data Sheets
User Manual
| Weight | N/A |
|---|---|
| Amp | 100/5, 125/5, 200/5, 300/5, 500/5 |
| Cable Diameter | 16mm, 24mm, 36mm |
