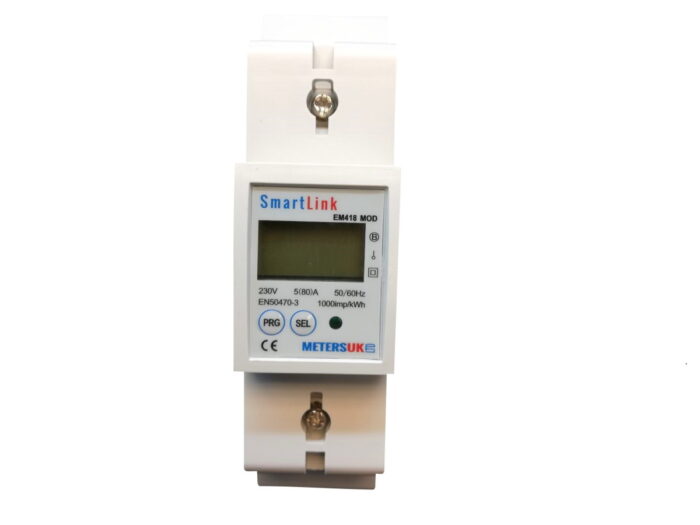

EM418 Single Phase Modbus Meter 80Amp

£49.00 Ex VAT

(1 customer review)

This is the meter you would use should you need a single phase meter with amperage of 80Amp.

This meter is din rail mounted – should you require an enclosure please order the HT4 here.

If you just want to use this meter for domestic use and not connect to a BMS, please state “No” for programming. However, we would recommend the EM400 or EM445 instead, to avoid any confusion when installing.

If you are connecting to a BMS system, please ensure you have the following information available if you want us to program the unit (additional cost) :-
Baud Rate :  1200  |  2400  |  4800  |  9600
Address  :  1 – 256
Parity  : None | Even

  • Total


  • Main Features & Functions
    • Single Phase metering, 2 din modules
    • Accuracy class 1 according to EN50470-3
    • LCD display, 5 integer 1 decimal
    • Large clear backlight display
    • Smart communication port, Modbus RTU with 16 bit CRC
    • Energy consumption LED
    • 1000 imp per kWh
    • Direct metering up to 80A
    • Can be set through front panel
    • Memory back-up (EEprom)

Data Sheets
Wiring Diagram
Register Map

Additional information

Weight .800 kg

100/5, 200/5, 300/5, 500/5
