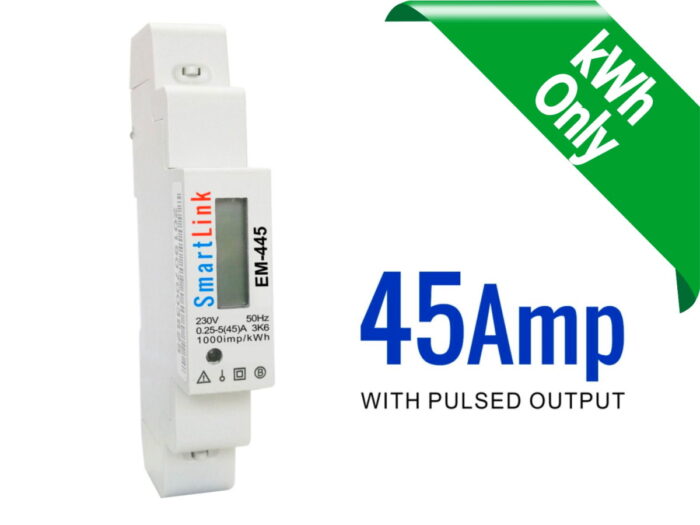

EM-445 Single Phase 45Amp Meter

£19.90 Ex VAT

(19 customer reviews)

The small, compact meter which is the UK’s favourite and no. 1 choice.

  • Single Phase meter
  • Displays kWh ONLY
  • 45Amp
  • 1 module din rail mounted
  • Easy to install in an existing Consumer Unit or separate enclosures are available.

This meter is din rail mounted – should you require an enclosure please order the HT2 here.

Categories: ,


The EM445 single phase meter is compact and easily installed. It is ideal for most domestic installations. (Landlord rentals, solar panels, studios and basic monitoring of energy). Only kWh energy used is displayed on the LCD.

The LED on the front of the meter flashes red when energy is being used. The faster the LED flashes the more energy is being used.

5 + 2 LCD display cannot be reset to zero and has a reading accuracy of 1/100 kWh.

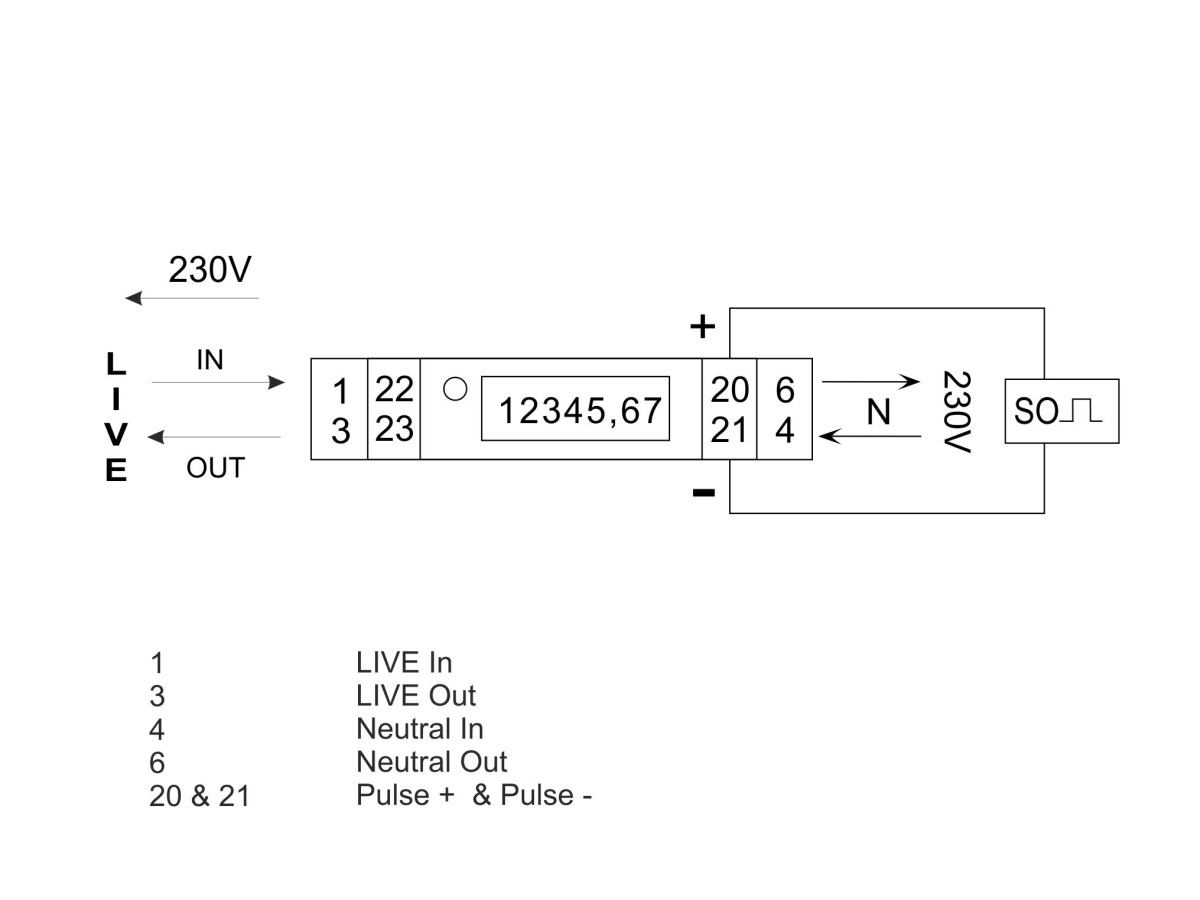

The pulsed output connects onto two auxiliary terminals in the main terminal block and is polarity dependant, with a passive transistor output.

The meter comes with a full 12 month warranty



Additional information

Weight .100 kg
Din Rail Meter

Single Unit, Din Rail Meter Package
